Parts List

Ref No. Description Part No. LX1F-X/ LX2F-XX LX3F-XXX

LX1SB-X

1 Switch T05742 1 1 -

2 Switch Harness T05763 1 1 -

3 Clear Lens T05735 - 1 -

T05734 1 - -

T89943 - - 1

4 Extrusion T05724 - 1 -

T05737 1 - -

T89942 - - 1

5 End Cap T02650 2 2 2

6 RVM Suction Cup Mtg. Kit S14041 1 1 1

Not shown Optional RVMMMS Mfg. Kit RVMMMS 1 1 -

Not shown #6x1/2" sheetmetal screw T02797 8 8 8

Not shown Adhesive Pad T01665 1 1 1

Not shown Hole plug T00337 1 1 1

Not shown Optional RDMRVM Mtg. Kit RDMRVM 1 1 1

Not shown Cig. Lighter Cable Ass'y T03042 1 1 1

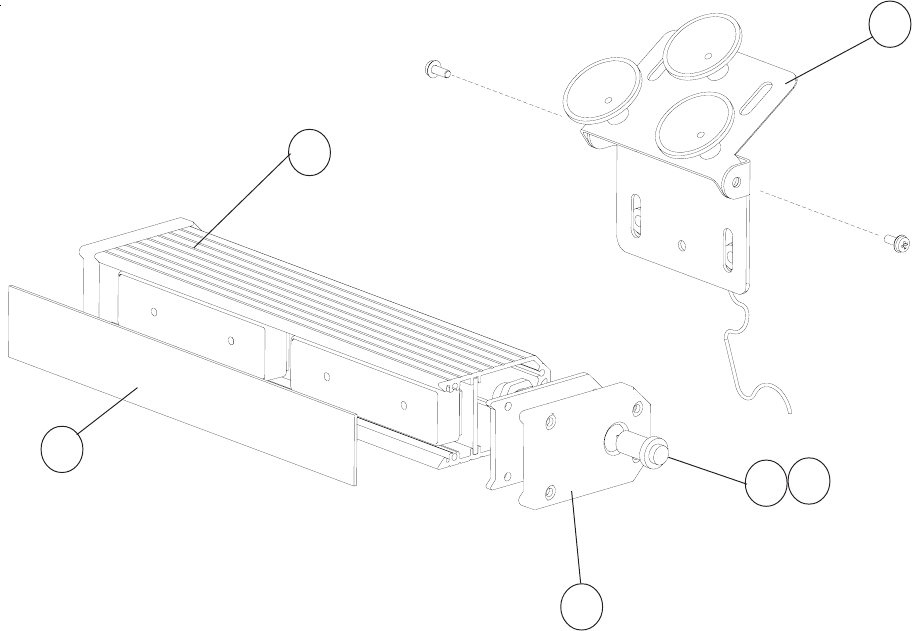

Figure 4
